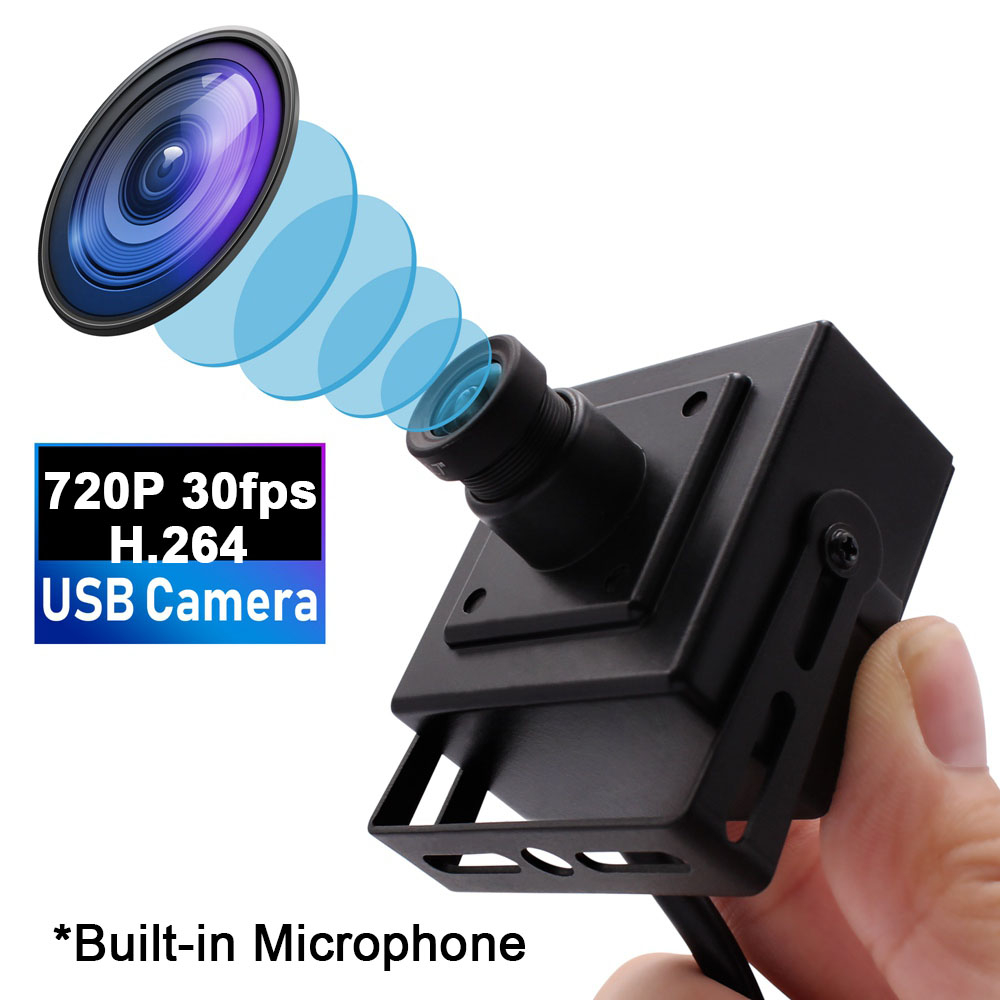

ELP 1MP USB Camera Built In Microphone H264 720P 30fps High Speed PC Webcam HD OV9712 Color Sensor Industrial Camera With Metal Casing 3.6mm Lens
Model: ELP-USB100W04H-BL36 is 1MP USB Camera max resolution1.0megapixel 1280(H)X720(V) with standard 3.6mm lens, metal casing ,equipped with 3m USB Cable .
Lens interchangeable, cable length have 0.3m, 0.5m, 1m, 2m,3m, 5m optional .
Main Features
*1megaepixes HD USB Camera, max 1280x720
*Equiped with Standard 3.6mm lens, other M12 Mount lens optional to change
*Support microphone, audio record function offered.
*H.264 ,MJPEG ,YUY2 compression format support ,max 720P @ 30fps
*Support IR Cut, for for sharp image and accurate color reproduction.
*CMOS OV9712 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*Camera with UVC.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
Main Specifications
| Model | ELP-USB100W04H-BL36 |
| Sensor | OV9712 |
| Lens Size | 1/4 inch |
| Pixel Size | 3.0um X 3.0um |
| image area | 3888 µm x 2430 µm |
| Max. Resolution | 1280(H)X720(V) |
| Compression format | H264 /MJPEG / YUV2（YUYV） |
| Resolution & frame | H264： 640X360@ 30fps /640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps MJPEG： 640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps YUV： 320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 10 fps |
| S/N Ratio | 40dB |
| Dynamic Range | 69dB |
| Sensitivity | 3.7V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class（UVC） |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
| Lens Parameter | Standard 3.6mm, optional 2.1/2.5/2.8/6mm/FOV(D)170 Degree |
| Digital audio | High quality digital MIC, support single, dual channel |
| IR CUT Connector | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 120mA~180mA |
| Working current | -10～70℃ |
| Working temperature | -20～85℃ |
| Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
| Cable | Standard 1M / optional 2M,3M,5M |
| Operating system request | Win7 Win8 Linux 2.6 or above Android 4.0 or above |
