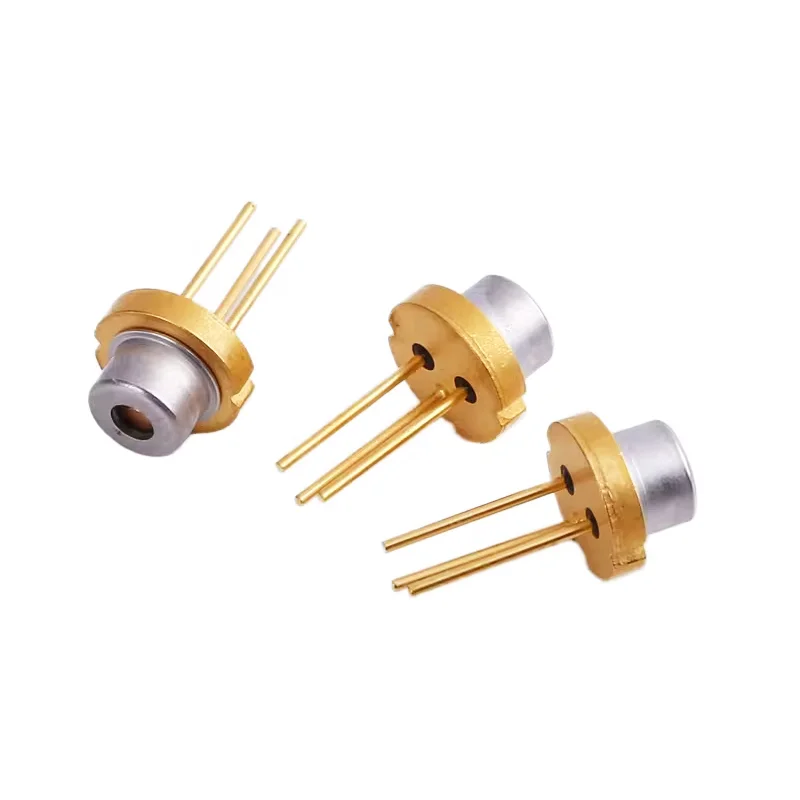

Laser diodes have revolutionized numerous fields, particularly in consumer electronics, where their precision, efficiency, and reliability have made them indispensable components. Y-CRYSTAL laser diodes not only play a key role in signal transmission in fiber-optic communications, but also greatly promote the development of the information age with their high-speed and low-loss characteristics. At the same time, they have also shown broad application potential in many fields such as medical treatment, industrial processing, measurement and sensing, and consumer electronics.

Optical Communication Transceivers

Optical communication transceivers are essential for transmitting data over long distances at high speeds. At the heart of these transceivers lie laser diodes, which convert electrical signals into optical signals. These signals are then transmitted through optical fibers, offering unparalleled bandwidth and low attenuation compared to traditional copper cables.

Laser diodes in optical transceivers operate under direct modulation, where the intensity of the laser beam is varied in response to the electrical data signal. This process requires laser diodes with high modulation bandwidth and low chirp (frequency modulation accompanying intensity modulation), ensuring minimal signal distortion.

Advancements in laser diode technology, such as the development of vertical-cavity surface-emitting lasers (VCSELs) and distributed feedback (DFB) lasers, have further enhanced the performance of optical transceivers. VCSELs, known for their low power consumption and high-density integration, are commonly used in short-reach applications like data centers and local area networks. On the other hand, DFB lasers, with their narrow linewidth and high side-mode suppression ratio, excel in long-haul communications due to their ability to transmit over extensive fiber lengths without significant signal degradation.

Storage Area Networks

Storage area networks (SANs) are critical in modern data centers, facilitating high-speed data transfer between servers and storage devices. Laser diodes play a vital role in these networks, particularly in the fiber channel interfaces that connect storage devices.

In SANs, laser diodes are used in optical transceivers to enable high-capacity, low-latency data transfers. These transceivers often employ multi-mode fiber optics, which support multiple light paths within the fiber core. Multi-mode fibers, combined with laser diodes optimized for short-wavelength emissions (such as 850 nm), provide cost-effective, high-speed connectivity over relatively short distances.

Moreover, the reliability and durability of laser diodes ensure that data integrity is maintained throughout numerous read/write cycles in SAN environments. This is crucial for maintaining the availability and consistency of stored data, which is essential for business continuity and operational efficiency.

Fiber Optic Sensors

Fiber optic sensors have emerged as powerful tools for measuring various physical parameters, such as temperature, pressure, strain, and vibration. Laser diodes play a pivotal role in these sensors by providing the optical energy necessary for signal generation and detection.

In fiber Bragg grating (FBG) sensors, for instance, laser diodes are used to interrogate the grating structure inscribed in the fiber core. When a broadband light source, often generated by a superluminescent diode, is launched into the fiber, the FBG reflects a narrow wavelength band corresponding to its Bragg condition. Changes in the measured parameter alter the Bragg wavelength, which can be detected by scanning the reflected spectrum with a tunable laser diode.

Laser diodes also enable distributed fiber optic sensing techniques, such as optical time-domain reflectometry (OTDR) and Brillouin scattering-based sensing. These techniques leverage the properties of laser light to measure parameters over the entire length of an optical fiber, providing continuous monitoring and real-time data acquisition.

Fiber Optic Testing and Measurement

Fiber optic testing and measurement equipment relies heavily on laser diodes to verify the performance and integrity of optical networks. These tools use laser light to characterize the optical properties of fibers and components, ensuring they meet the required specifications for reliable data transmission.

Optical power meters and light sources, both fundamental in fiber optic testing, often incorporate laser diodes. Light sources emit laser light at specific wavelengths to simulate network traffic, while power meters measure the light intensity at the receiving end to assess loss and attenuation.

In addition, optical time-domain reflectometers (OTDRs) use pulsed laser diodes to locate faults, splices, and connectors along the fiber length. The reflected light from these points is analyzed to determine the location and nature of any discontinuities, enabling technicians to quickly diagnose and rectify issues.

Laser diodes also play a crucial role in spectral analysis and wavelength characterization, ensuring the accuracy and precision of optical components. Spectrometers equipped with tunable laser diodes can scan the optical spectrum, providing detailed information about the wavelength and bandwidth of light sources and filters.

Conclusion

Laser diodes are indispensable in consumer electronics, driving innovations in optical communication transceivers, storage area networks, fiber optic sensors, and fiber optic testing and measurement. Their unique properties, such as high modulation bandwidth, low chirp, and reliability, make them ideal for high-speed data transfer, precise measurements, and continuous monitoring. As technology continues to evolve, Y-CRYSTAL laser diodes will undoubtedly play an even more significant role in shaping the future of consumer electronics.
