The accuracy and integrity of the pcb equipment rubber part are related to multiple factors. The following are the main influencing factors:

I. Material factors

Material properties

The hardness, corrosion resistance and surface condition of the material will all affect the accuracy and integrity of etching. For instance, materials with higher hardness may be more difficult to achieve the desired depth and uniformity during etching.

The thickness of the material is also an important factor affecting the etching accuracy. Generally speaking, for thicker materials, the etching accuracy error is greater than that for thinner materials.

Material selection

Etching-specific materials usually have better etching performance and higher precision. Therefore, when choosing materials, the selection should be made based on the etching requirements and product demands.

Ii. Etching Solution Factors

Etching solution formula and concentration

The selection and concentration of the etching solution have a direct impact on the etching speed and depth, and thus affect the processing accuracy. Different metal etching requires the preparation of different etching solutions.

Both excessively high and low concentrations of the etching solution may lead to uneven etching or excessive etching, thereby affecting accuracy and integrity.

Etching solution temperature

The temperature of the etching solution also affects the etching speed and etching effect. Generally speaking, as the temperature rises, the etching speed will increase. However, excessively high temperatures may cause instability or overreaction of the etching solution, thereby affecting the accuracy.

Iii. Equipment Factors

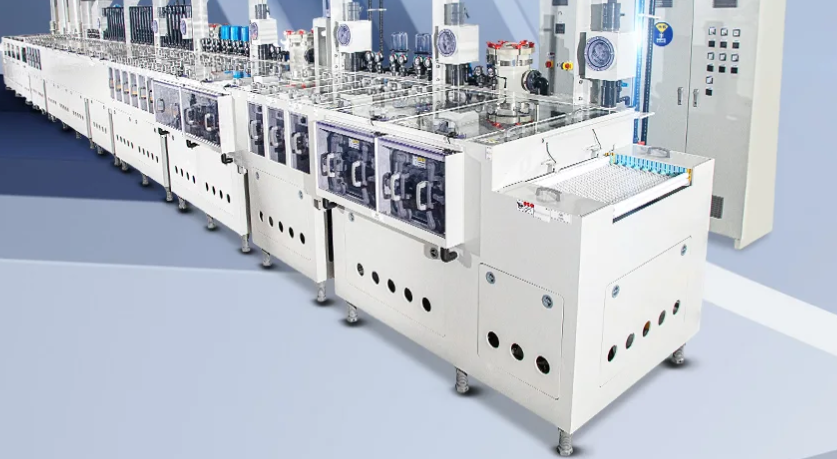

Etching equipment performance

Factors such as the stability, accuracy and degree of automation of the equipment will all have an impact on the accuracy of etching processing. High-precision etching equipment usually features better stability and higher processing accuracy.

The maintenance and upkeep of equipment are also important prerequisites for ensuring the accuracy of etching processing. Regular maintenance and upkeep of equipment can effectively extend its service life and improve processing accuracy.

Exposure equipment accuracy

In the process of pcb equipment rubber part, the exposure accuracy of the exposure machine directly affects the accuracy of the etched parts. Therefore, choosing high-precision exposure equipment is crucial for ensuring etching accuracy.

Iv. Process Parameter Factors

Etching time

The control of etching time is crucial for ensuring the depth and accuracy of etching. An overly long etching time may lead to over-etching, while an overly short etching time may fail to achieve the desired etching depth.

Etching pressure

In some etching processes, etching pressure is also an important control parameter. Appropriate etching pressure can ensure that the etching solution is in full contact with the metal surface, thereby enhancing the etching efficiency and accuracy.

Current density

During the electro-etching process, the magnitude of the current density directly affects the dissolution rate of the metal and the etching effect. Excessively high current density may lead to passivation and charring, while too low current density may prevent the ideal etching depth from being achieved.

V. Other factors

Operator skills

The skills and experience of the operators will also affect the accuracy and integrity of the etching. Skilled operators can usually control etching parameters and processes more accurately, thereby improving etching quality.

Environmental factors

Environmental factors during the etching process, such as temperature, humidity and cleanliness, may also have an impact on the etching accuracy and integrity. Therefore, during the etching process, environmental factors should be strictly controlled to ensure the stability and controllability of the etching process.

To sum up, the accuracy and integrity of the pcb equipment rubber part are closely related to multiple aspects such as material properties, etching solution formulation and concentration, equipment performance, process parameters, as well as the skills of operators and environmental factors. To obtain high-quality etched signs, comprehensive consideration and control in these aspects are required.
