In the realm of modern manufacturing, the efficiency and precision of welding processes are paramount. One of the key innovations that have significantly enhanced welding operations is the double column & rotary welding positioner. This sophisticated piece of machinery, developed by Wuxi YuanPeng Machinery, is designed to improve the accuracy and quality of welds while optimizing the workflow in various industrial applications.
Understanding the Double Column & Rotary Welding Positioner

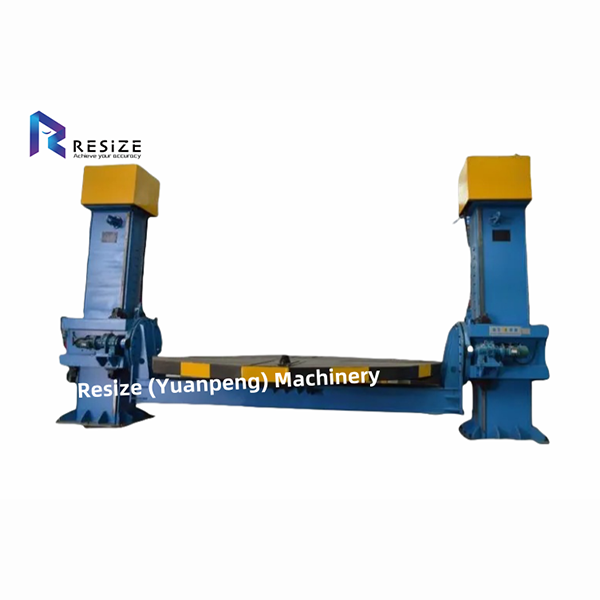

Before exploring the working principle and operation process, it is essential to understand what a double column & rotary welding positioner is. This equipment is primarily used to hold and manipulate workpieces during welding operations. The design features two vertical columns that provide stability and support, along with a rotary table that allows for the rotation of the workpiece. This configuration enables welders to access different angles and positions of the workpiece, ensuring a more efficient and effective welding process.
Wuxi YuanPeng Machinery has established itself as a leader in manufacturing high-quality welding positioners, including the double column & rotary welding positioner. Their commitment to innovation and quality has made their products a preferred choice in various industries, including shipbuilding, automotive, and heavy machinery.
Working Principle of the Double Column & Rotary Welding Positioner
The working principle of the double column & rotary welding positioner revolves around its ability to manipulate the workpiece in multiple dimensions. The key components of this equipment include:
1. Double Columns: The two vertical columns provide a robust framework that supports the rotary table and the workpiece. This design ensures stability during the welding process, minimizing vibrations that could affect the quality of the weld.
2. Rotary Table: The rotary table is mounted on the base of the positioner and is capable of rotating the workpiece around a vertical axis. This rotation allows welders to access different sides of the workpiece without having to reposition it manually, thereby saving time and effort.
3. Drive System: The positioner is equipped with a drive system that controls the rotation of the table. This system can be powered by electric motors, hydraulic systems, or a combination of both, depending on the specific requirements of the application.
4. Control System: A sophisticated control system allows operators to set the desired rotation speed and angle of the workpiece. This system can be manual or automated, with advanced models featuring programmable controls for enhanced precision.
5. Workpiece Clamping Mechanism: To ensure that the workpiece remains securely in place during the welding process, the positioner is equipped with a clamping mechanism. This mechanism can accommodate various shapes and sizes of workpieces, providing versatility in welding applications.
Operation Process of the Double Column & Rotary Welding Positioner
The operation process of the double column & rotary welding positioner can be broken down into several key steps:
1. Setup and Preparation: Before beginning the welding process, operators must set up the positioner. This involves securing the workpiece onto the rotary table using the clamping mechanism. It is crucial to ensure that the workpiece is properly aligned and securely fastened to prevent any movement during welding.
2. Adjusting the Positioner: Once the workpiece is secured, operators can adjust the positioner to the desired angle and height. This adjustment is essential for achieving optimal welding conditions, as it allows the welder to work comfortably and efficiently.
3. Programming the Control System: If the positioner is equipped with an automated control system, operators can program the desired rotation speed and angle. This feature is particularly beneficial for complex welding tasks that require precise movements.
4. Initiating the Welding Process: With the workpiece secured and the positioner adjusted, the welding process can begin. The rotary table can be activated to rotate the workpiece as needed, allowing the welder to access different areas without interruption.
5. Monitoring and Adjusting: During the welding process, operators must monitor the quality of the weld and make any necessary adjustments to the positioner. This may involve changing the rotation speed or angle to ensure that the weld is consistent and meets quality standards.
6. Completion and Inspection: Once the welding is complete, the positioner can be stopped, and the workpiece can be inspected for quality. Any defects or inconsistencies can be addressed at this stage, ensuring that the final product meets the required specifications.
7. Post-Operation Maintenance: After the welding operation, it is essential to perform maintenance on the positioner. This includes cleaning the equipment, checking for any wear and tear, and ensuring that all components are functioning correctly. Regular maintenance is crucial for prolonging the lifespan of the positioner and ensuring consistent performance.
Advantages of Using the Double Column & Rotary Welding Positioner
The double column & rotary welding positioner offers several advantages that make it an invaluable tool in the welding industry:
1. Increased Efficiency: By allowing for the rotation of the workpiece, the positioner reduces the need for manual repositioning, saving time and increasing productivity.
2. Improved Weld Quality: The stability provided by the double columns minimizes vibrations, leading to more consistent and high-quality welds.
3. Versatility: The clamping mechanism can accommodate various workpiece shapes and sizes, making the positioner suitable for a wide range of applications.
4. Enhanced Safety: By providing a secure and stable platform for welding, the positioner reduces the risk of accidents and injuries associated with manual handling of heavy workpieces.
5. Programmable Controls: Advanced models with programmable controls allow for precise movements and adjustments, further enhancing the quality and efficiency of the welding process.
Conclusion
The double column & rotary welding positioner, as developed by Wuxi YuanPeng Machinery, represents a significant advancement in welding technology. Its innovative design and operational capabilities enhance the efficiency, quality, and safety of welding processes across various industries. By understanding the working principle and operation process of this equipment, manufacturers can leverage its benefits to improve their welding operations and achieve superior results. As the industry continues to evolve, the importance of such advanced machinery will only grow, making it essential for businesses to invest in high-quality welding positioners to stay competitive in the market.
